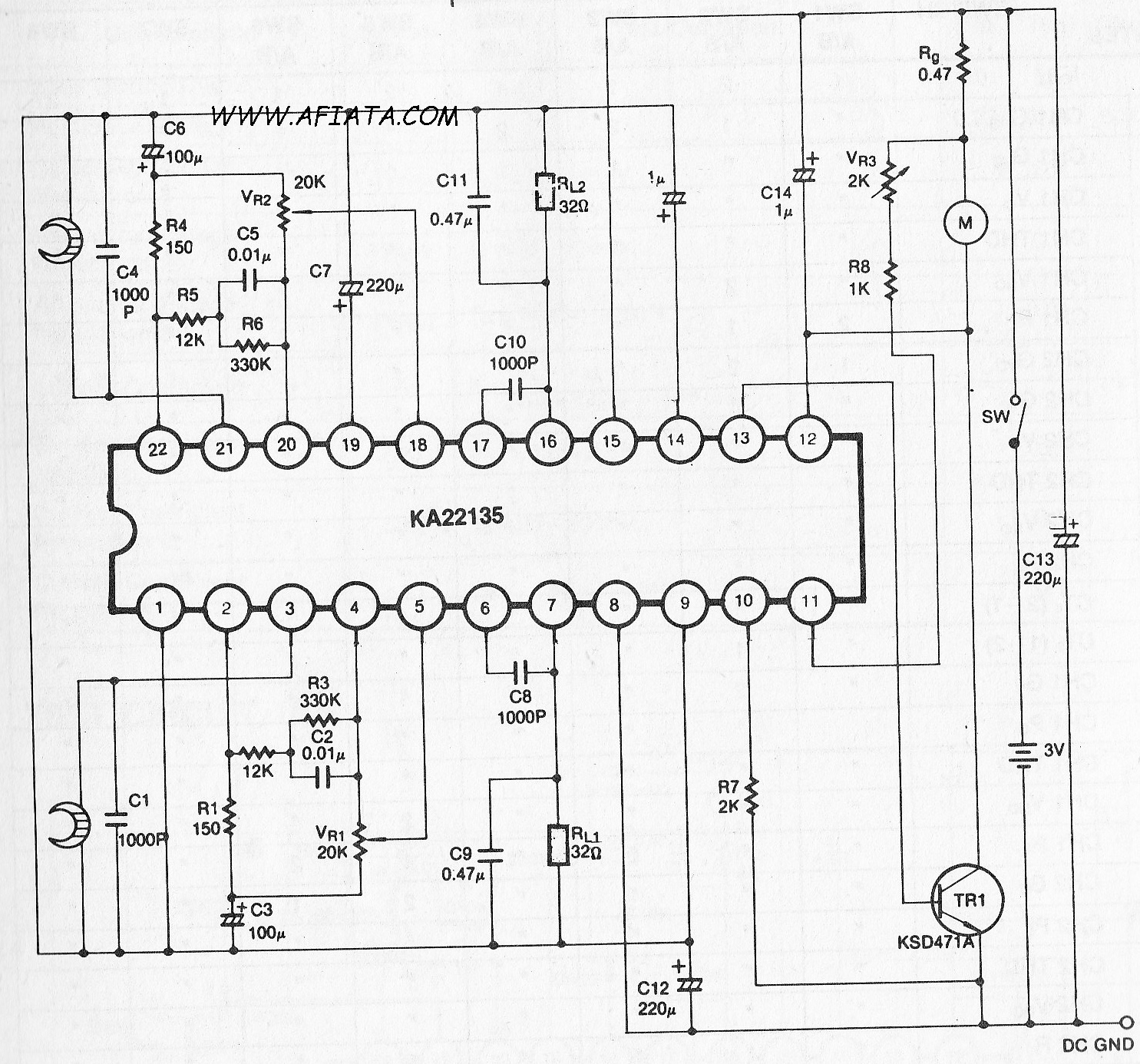

Series-Wound Direction And Speed Motor Control
This is a motor controller circuit that controls the speed and direction of series-wound motors. This circuit employs silicon controlled rectifiers (SCR).
The motor controller circuit is designed to manage both the speed and direction of series-wound motors, which are commonly...

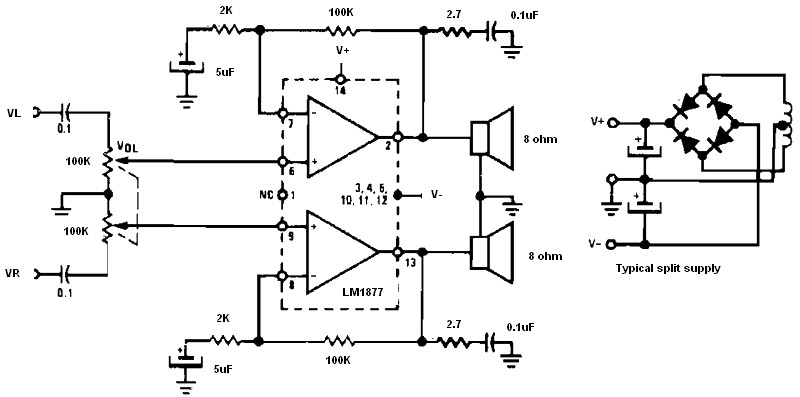

Non inverting audio amplifier
Non-inverting audio amplifier schematic. This non-inverting audio amplifier circuit can be utilized in multi-channel audio systems, stereo phonographs, tape recorders and players, AM-FM radio receivers, servo amplifiers, intercom systems, and automotive products. The audio amplifier described here employs two small...
Audio Signal Strength Detector/Converter
Below is the schematic diagram of an audio input module. This module is capable of producing a DC output voltage that is proportional to the amplitude of the input signal.
The audio input module typically consists of several key components that...

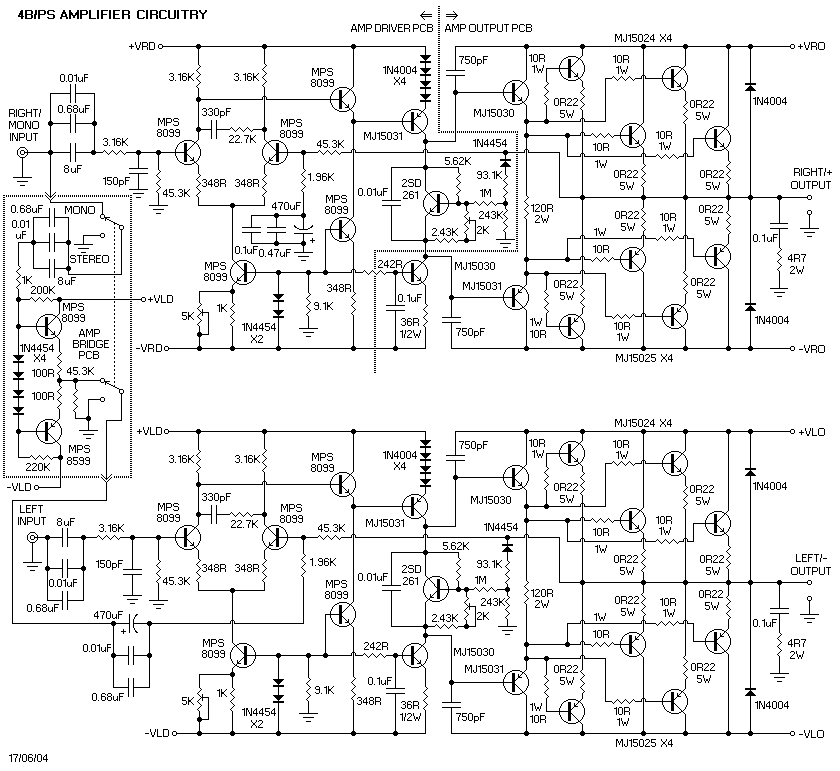

Power Amplifiers
It is important to note that there is limited protection circuitry and fuses in this amplifier. A short turn-on delay for the output power supply is included to minimize thumps, along with a couple of line fuses, but no additional...

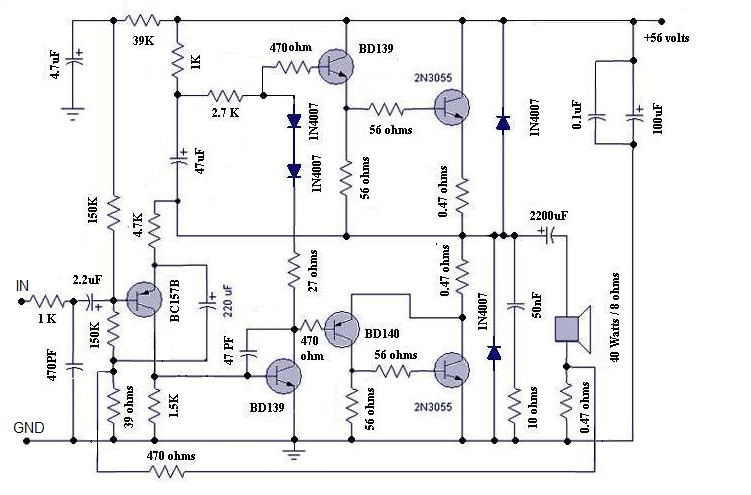

Motional feed back amplifier
This versatile amplifier circuit was designed and submitted by Mr. Seetharaman Subramanian from Chennai. The original concept appeared in Practical Electronics, a UK-based magazine, and the circuit was finalized after extensive field trials and modifications between 1981 and 1986. Many...

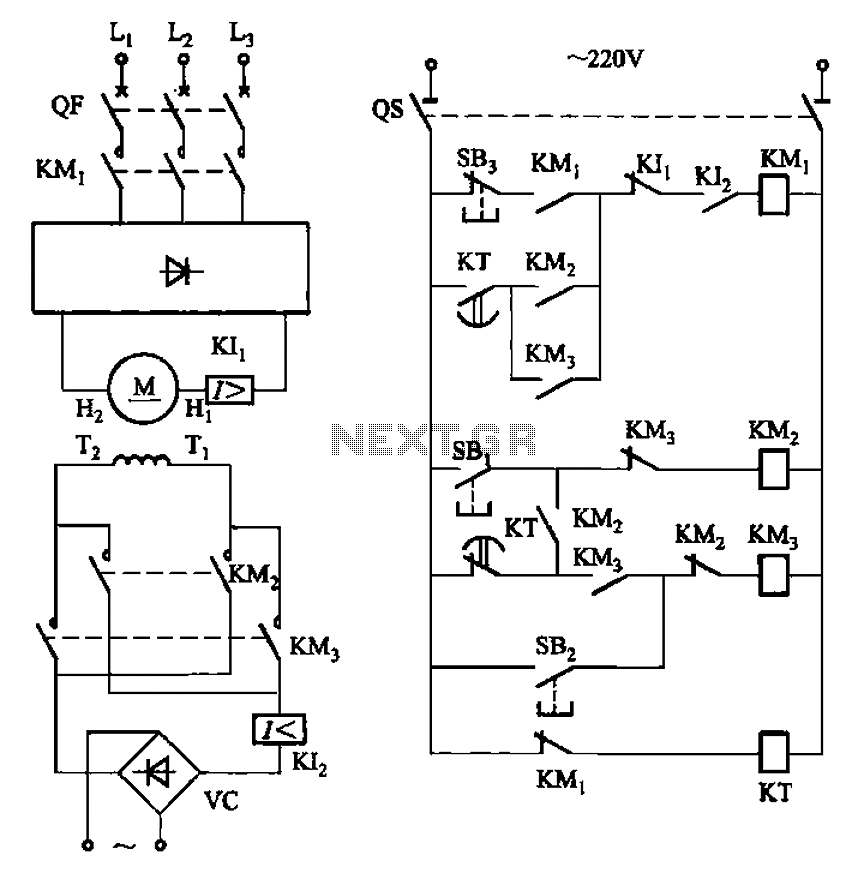

Separately excited DC motor reversing circuit
The circuit depicted in Figure 3-193 illustrates a separately excited DC motor. The brake circuit is not activated; therefore, positive reversals occur alternately using a delay action relay, ensuring that the motor reverses direction after coming to a stop.
The schematic...

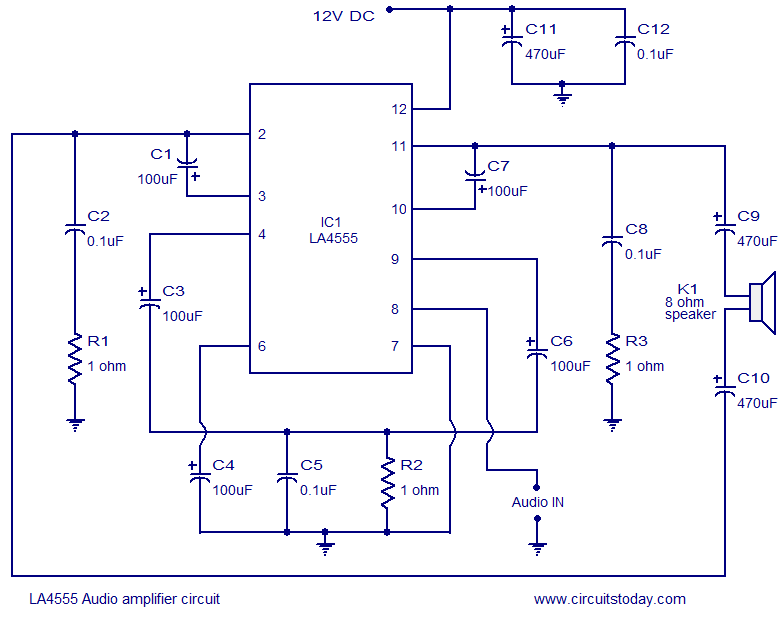

LA4550 audio amplifier circuit 4W 8 ohm 12V operation
The LA4550 audio amplifier operates in a BTL (Bridge-Tied Load) configuration. This amplifier is capable of delivering 4W into an 8-ohm load when powered by a 12V power supply.
The LA4550 is designed for audio amplification applications, particularly in situations where...

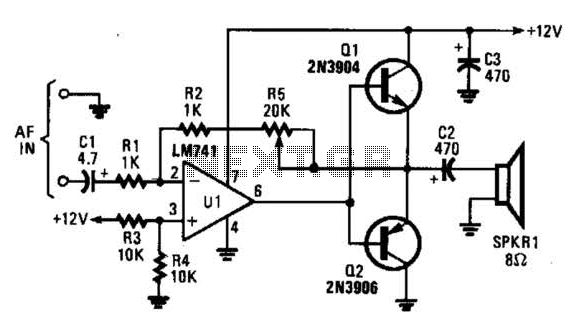

Audio Power Amplifier Circuit
The circuit is designed around an LM741 operational amplifier configured as an inverting amplifier. It is utilized to drive complementary transistors (Q1 and Q2). The feedback loop of the op-amp incorporates the base-emitter junctions of both transistors, which aids in...
Class A 2A3 audio Amplifier
The input stage is comprised of both halves of a 6SL7 octal dual hi-mu triode in a differential amp configuration with a 1mA constant current cathode load. Field-effect (constant-current) diodes are used for simplicity. The differential amp approach was chosen...
