Description: Due to a lack of assistance in the tubes/valves section, a request for help is being posted here in the hope that someone can provide support.
In the context of electronic circuits, tubes (or valves) are critical components used for amplification, switching, and signal modulation. They operate by controlling the flow of electrons in a vacuum or gas-filled environment. Understanding the operation and application of these components is essential for designing circuits that require high voltage and current handling capacities, such as audio amplifiers, RF transmitters, and vintage audio equipment.
When designing a circuit that incorporates tubes, several key factors must be considered. The choice of tube type (e.g., triode, pentode, or beam power tube) will significantly influence the circuit's performance characteristics. Triodes are known for their linear amplification and are often used in audio applications, while pentodes provide higher power output and are more suited for RF applications.
Power supply design is also crucial when working with tube circuits. Tube amplifiers typically require high voltage DC power supplies, which must be carefully designed to ensure stability and minimize noise. Additionally, proper biasing of the tubes is essential for optimal performance and longevity. This involves setting the correct operating point for the tube to ensure it operates within its safe limits.
Furthermore, circuit layout and component selection play vital roles in the overall performance of tube-based circuits. High-quality capacitors and resistors are often preferred to minimize signal degradation. The physical layout should also minimize parasitic capacitance and inductance, which can adversely affect the circuit's performance, particularly at high frequencies.
In conclusion, designing circuits with tubes requires a thorough understanding of their operation, careful consideration of power supply design, biasing, and component selection. Proper circuit layout is equally important to ensure optimal performance and reliability.Because i cant get help with this in tubes/valves section, i`m opening thread here with HOPE , that SOMEONE whould be able to HELP ME. I need help..

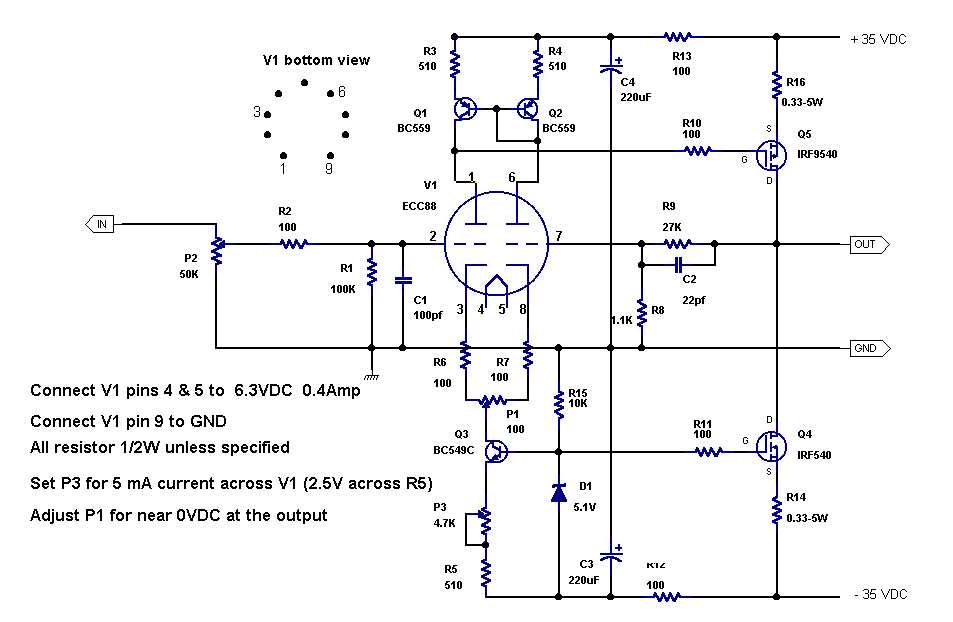

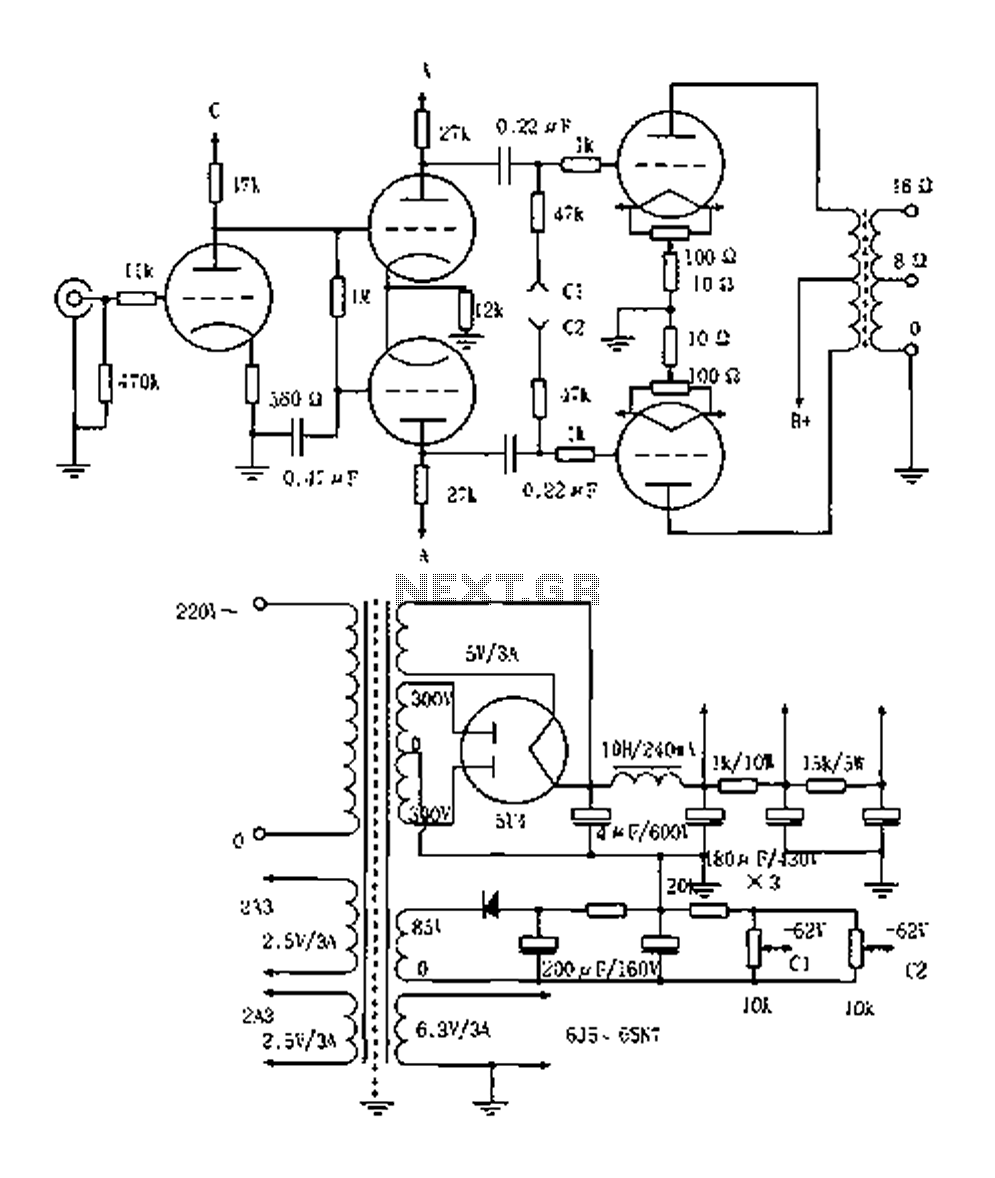

The Elliot 2A3PP line amplifier is a straightforward design, emphasizing the quality of the output transformer. It utilizes a 3KPP output transformer with a fixed bias of 62V, delivering an output power of 15W. The 2A3PP is well-suited for speakers...
The TDA2549 is a complete intermediate frequency (IF) circuit that includes automatic frequency control (AFC), automatic gain control (AGC), demodulation, and video preamplification capabilities for multistandard television receivers. It can process both positively and negatively modulated video signals in color...
This simple and inexpensive audio amplifier can be constructed using a couple of TO-220 monolithic Darlington transistors for the push-pull output stage. The frequency response is flat within 1 dB from 30 Hz to 200 kHz, with typical harmonic distortion...

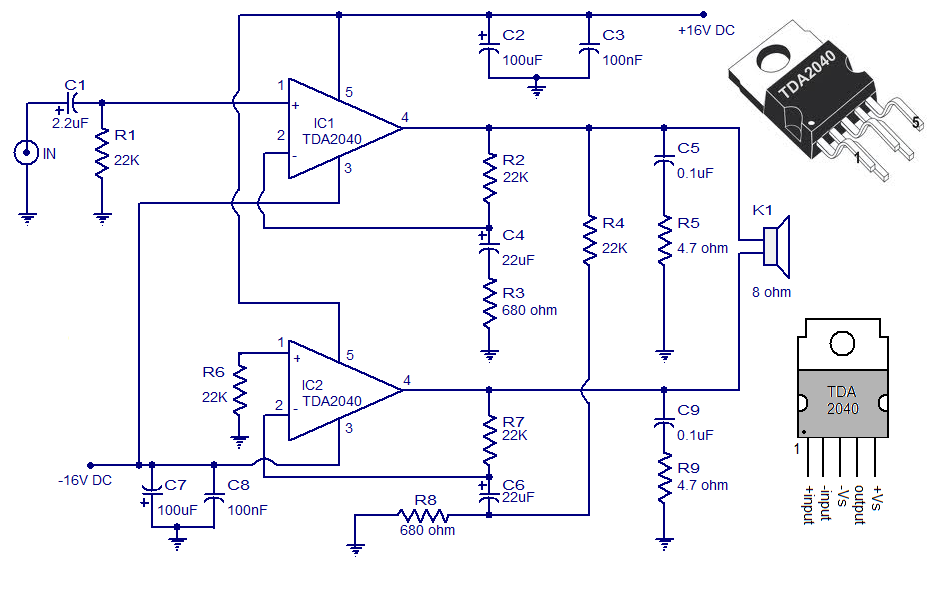

A 30 Watt audio amplifier circuit utilizing the TDA2040 is illustrated here. The TDA2040 is a class AB monolithic integrated audio amplifier available in a Pentawatt package. This integrated circuit features low harmonic distortion, minimal crossover distortion, and includes built-in...

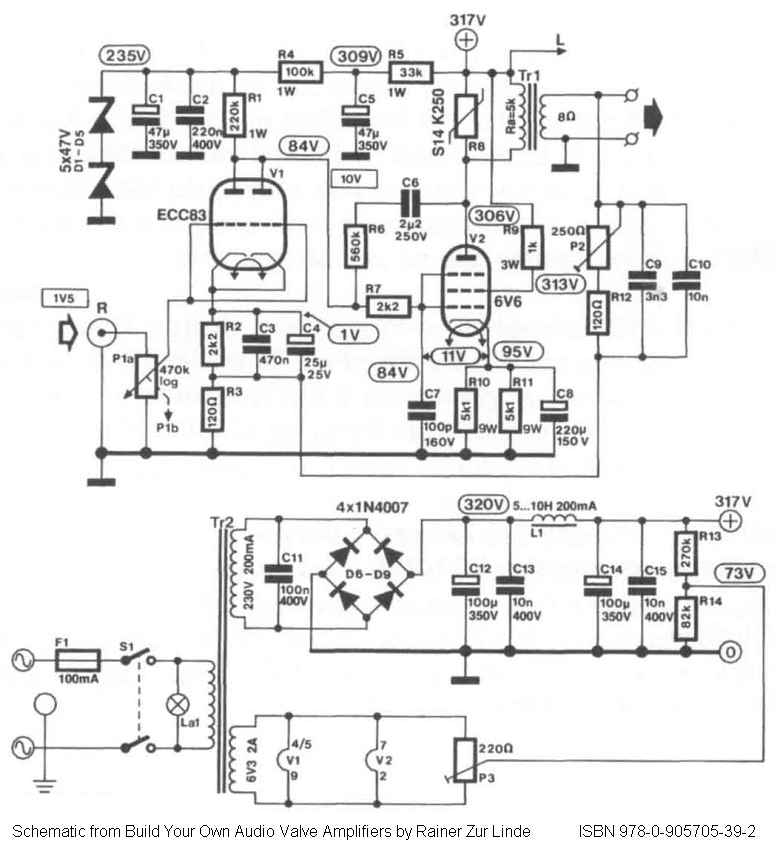

Direct-coupled single-ended (SE) 6V6 and 6V6GT tube amplifier schematic with ECC83 driver stage. From the book "Build Your Own Audio Valve Amplifier" by Rainer zur Linde.
The described circuit represents a direct-coupled single-ended tube amplifier utilizing 6V6 or 6V6GT vacuum tubes,...
A very simple audio amplifier circuit can be designed using the TBA820M audio amplifier integrated circuit with just a few electronic components. This audio amplifier project features a high gain that allows for the detection of sounds underwater. The TBA820M...
This circuit can be directly connected to CD players, tuners, and tape recorders. It requires the addition of a 10K logarithmic potentiometer (dual gang for stereo) and a switch to accommodate various sources. Proper grounding is crucial to eliminate hum...
With the amount of equipment in home entertainment centers today the need to be able to vary the gain of the audio or video signal is needed. I found this particular circuit helpful when used in conjunction with the Universal...
This amplifier is of such high quality that it would be an understatement to call it a HIFI amplifier. According to HIFI-confirmed-Finland, the frequency response must be direct and distortion <1% 20-20 kHz. Our power amplifier circuit meets the above requirements for bandwidth 5Hz - 500 kHz, however, the frequency band is limited to prevent interference. The amplifier meets the requirements for a reference amplifier, which is suitable for measurement and comparison operations. Small 12-24V voltage system amplifiers operating in the power and properties are somewhat modest, for instance, testing decent speakers. The amplifier is also suitable for demanding PA use.
When music occurs at shallow close 20Hz sound levels, the whole amplifier power reserve may need to be temporarily used. This happens especially when the low-frequency emphasis equalizer or amplifier is used, for example, TV. Watching a movie with lots of sound effects, if the power is not enough in that situation, the sound from the speakers is distorted, reducing the enjoyment of hearing or even damaging the speaker drivers.
The distortion of human hearing range is only about 20 Hz-20 kHz. The hi-fi speaker gamut extends at its best to 25kHz and the hearing area of bats "remains" at 150 kHz, so what are the practical benefits of the amplifier's superior frequency characteristics? The power of less than 1% distortion mentioned in the title 220W blue means the so-called total maximum amount of distortion. This includes TIM distortion (Transient intermodulation) as well as IM-distortion (intermodulation-distortion). TIM distortion occurs in connection with high-speed percussion sounds, such as the sound of dishes on drums. If the amplifier's share of this distortion is high, the amplifier will not be able to play the sound clean, but the sound will be distorted.
The higher the frequencies the amplifier is capable of playing, the less is TIM distortion. If the amplifier would be able to repeat 600 kHz, distortion would not occur at all. IM distortion means that the amplifier generates excess denominated, the so-called undesirable ghost signals. For example, fed in to 19 kHz. And 20 kHz, consists of the difference between 1kHz. Safety Because this amplifier has AC parts, its construction is permitted only in the technical work of teachers. Even in this case, the device should be checked by experts before connecting it to the network. Although the equipment has been revised, it is worth remembering that even the only speaker outputs may at best affect almost 70V the effective voltage.
Therefore, caution is necessary during building and operation. For instance, the speaker terminals should be protected against contact. Building instructions and testing of the amplifier circuit board components will be worth and an amplifier solder test in three stages: 1) The components of the power side, and all the cables signal cables except installed 2) any other circuit board components plus not only hybrid circuit STK 4231 3) STK 4231 placed and cooled, and the input signals the wires connected.
Installation of the power-side components and testing should be done carefully. The transformer wires insulation must first be removed carefully or checked that this has already been done. Then the transformer conductors order is checked on the transformer side.

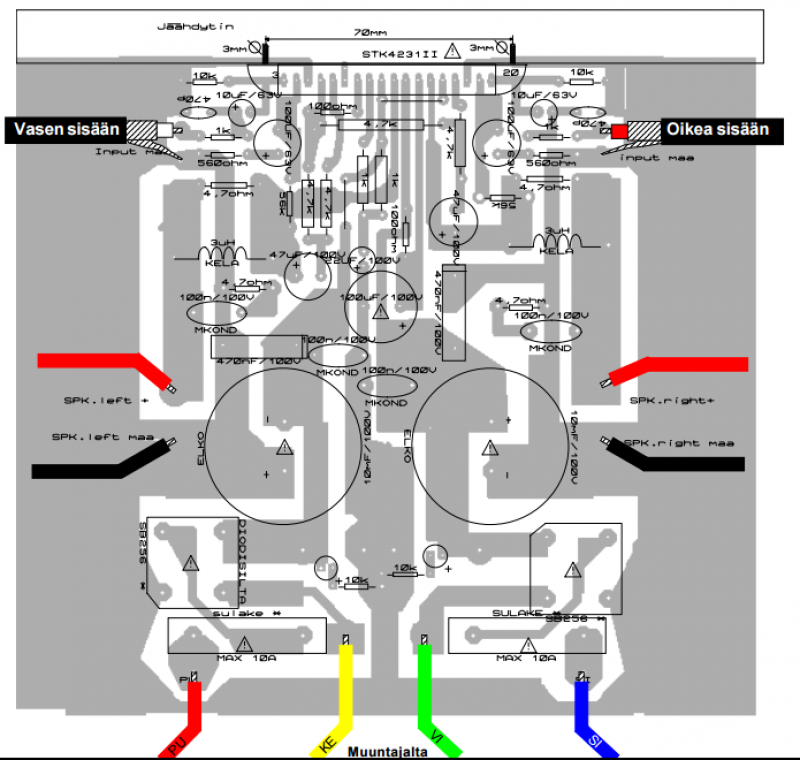

The circuit board parts include STK4231II Hybrid, Led green, resistors of different values, ceramic and plastic capacitors, a rectifier, fuse holders and fuses, a coil, line voltage parts, potentiometer, RCA connectors, speaker output screws, and a cooling unit.
