Description: This circuit is designed to display the voltage level of a standard 3.6-volt lithium-ion rechargeable cell phone battery using a 4 LED bar graph. The reference voltage is supplied by a TL431 programmable voltage source, configured to 3.9 volts through a connection to a 1K resistor. An adjustable 5K resistor is utilized to set the lower reference for the LED connected to pin 14.
The circuit operates by monitoring the voltage of the lithium-ion battery and translating this voltage into a visual representation through the LED bar graph. The TL431 acts as a precision voltage reference and is adjustable, allowing for fine-tuning of the voltage level that corresponds to the activation of the LEDs.
The four LEDs are arranged in a bar graph format, where each LED illuminates based on the battery voltage level. As the battery voltage increases, more LEDs will light up, providing a clear visual indication of the battery's state of charge. The use of the 1K resistor in conjunction with the TL431 ensures that the reference voltage is stable and can accurately control the activation of the LEDs.
The 5K adjustable resistor allows for calibration of the lower threshold, ensuring that the first LED lights up at the desired voltage level, which is critical for accurate battery monitoring. This feature is particularly useful for applications where the battery voltage needs to be closely monitored to prevent over-discharge, which can damage lithium-ion cells.
Overall, this circuit provides an effective and efficient means of displaying battery voltage levels, making it a valuable addition to battery-powered devices where visual feedback on battery status is essential.This is a similar circuit to the above and provides a 4 LED bar graph indicating the voltage of a common 3.6 volt Lithium - Ion recharable cell phone battery. The reference voltage is provided by a TL431 programmable voltage source which is set to 3.9 volts where the TL431 connects to the 1K resistor.
The lower reference for the LED at pin 14 is set with the 5K adjustable resistor..
The circuit operates by monitoring the voltage of the lithium-ion battery and translating this voltage into a visual representation through the LED bar graph. The TL431 acts as a precision voltage reference and is adjustable, allowing for fine-tuning of the voltage level that corresponds to the activation of the LEDs.
The four LEDs are arranged in a bar graph format, where each LED illuminates based on the battery voltage level. As the battery voltage increases, more LEDs will light up, providing a clear visual indication of the battery's state of charge. The use of the 1K resistor in conjunction with the TL431 ensures that the reference voltage is stable and can accurately control the activation of the LEDs.
The 5K adjustable resistor allows for calibration of the lower threshold, ensuring that the first LED lights up at the desired voltage level, which is critical for accurate battery monitoring. This feature is particularly useful for applications where the battery voltage needs to be closely monitored to prevent over-discharge, which can damage lithium-ion cells.
Overall, this circuit provides an effective and efficient means of displaying battery voltage levels, making it a valuable addition to battery-powered devices where visual feedback on battery status is essential.This is a similar circuit to the above and provides a 4 LED bar graph indicating the voltage of a common 3.6 volt Lithium - Ion recharable cell phone battery. The reference voltage is provided by a TL431 programmable voltage source which is set to 3.9 volts where the TL431 connects to the 1K resistor.
The lower reference for the LED at pin 14 is set with the 5K adjustable resistor..

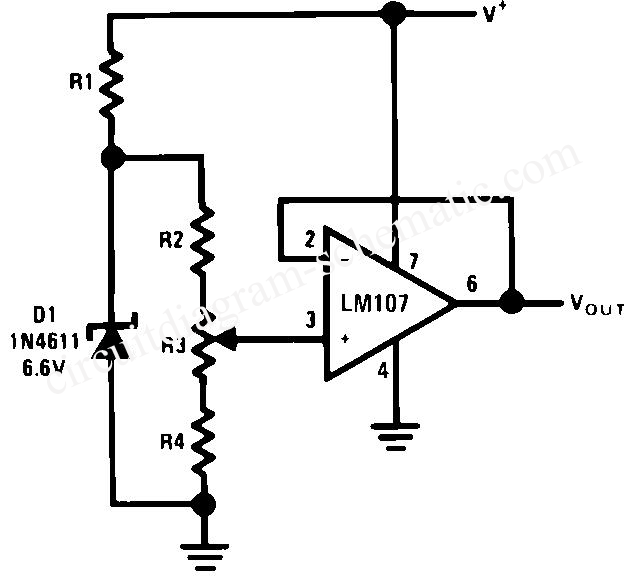

Positive Voltage Reference Circuit
The circuit is designed for high precision operation over an extended temperature range, provided that V+ remains relatively constant, as the current IZ is dependent on V+. Resistors R1, R2, R3, and R4 are selected to ensure the appropriate IZ...
Lithium ion battery charging circuit diagram
A lithium-ion battery charging circuit is illustrated above. Initially, when charging begins, if the battery voltage is below 8.4V, the output of IC1 is inactive. As a result, Q2 remains off, and the LM317 operates in constant current mode. When...
Low Power Voltage Reference
The voltage reference circuit detailed below is a specialized implementation of the LM334 current source. It is characterized by a very low temperature coefficient for the output voltage and consumes only 10 µA at room temperature. This current may fluctuate...

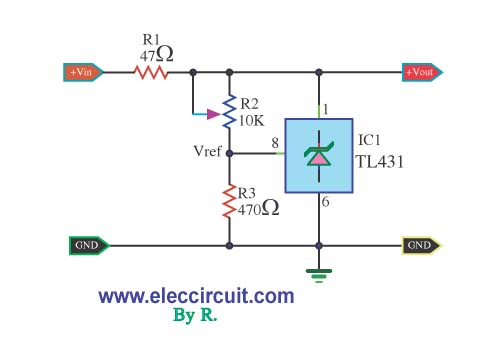

Adjustable Regulator by TL431
This is a simple adjustable voltage regulator power supply circuit that utilizes the integrated circuit TL431. The circuit can output a voltage range from 3V to 30V, depending on the configuration.
The adjustable voltage regulator circuit employing the TL431 is designed...
Lithium-ion Battery Charger One
The lithium-ion rechargeable battery charger described in the example operates using a constant voltage and current method. It is designed for charging 3.6V lithium-ion batteries commonly found in various mobile phones. The circuit's working principle involves a battery charger circuit,...

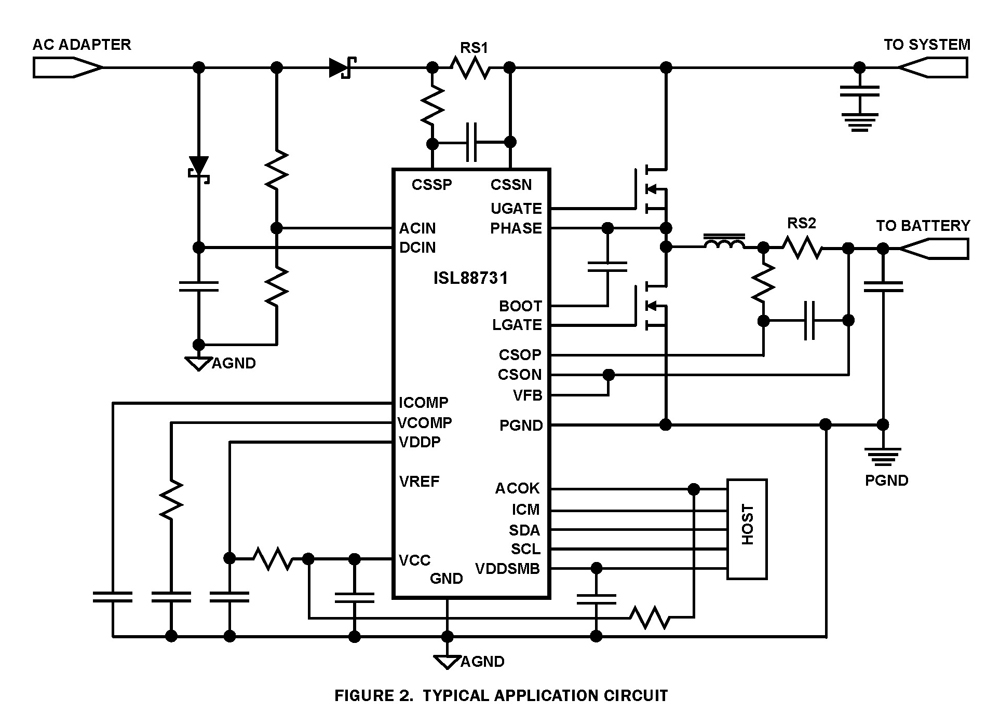

ISL88731 SMBus Level 2 Battery Charger
The ISL88731 is a highly integrated Lithium-ion battery charger controller that can be programmed via the SMBus system management bus. It is designed for use in a smart battery charger (SBC) within a smart battery system (SBS) that regulates the...

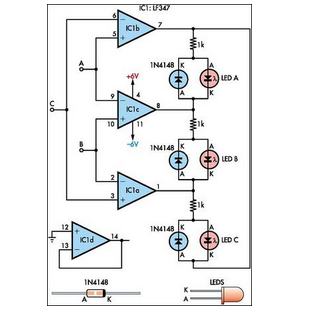

Maximum Minimum Voltage Indicator
This circuit indicates which of three voltages in the range from approximately -4V to +4V at points A, B, and C is the highest by illuminating one of three indicators.
The circuit is designed to compare three input voltages, labeled A,...
3.6 Volt cell phone battery meter circuit
This circuit functions similarly to the previous one and features a 4 LED bar graph that displays the voltage of a common 3.6-volt lithium-ion rechargeable cell phone battery. The reference voltage is supplied by a TL431 programmable voltage source, which...

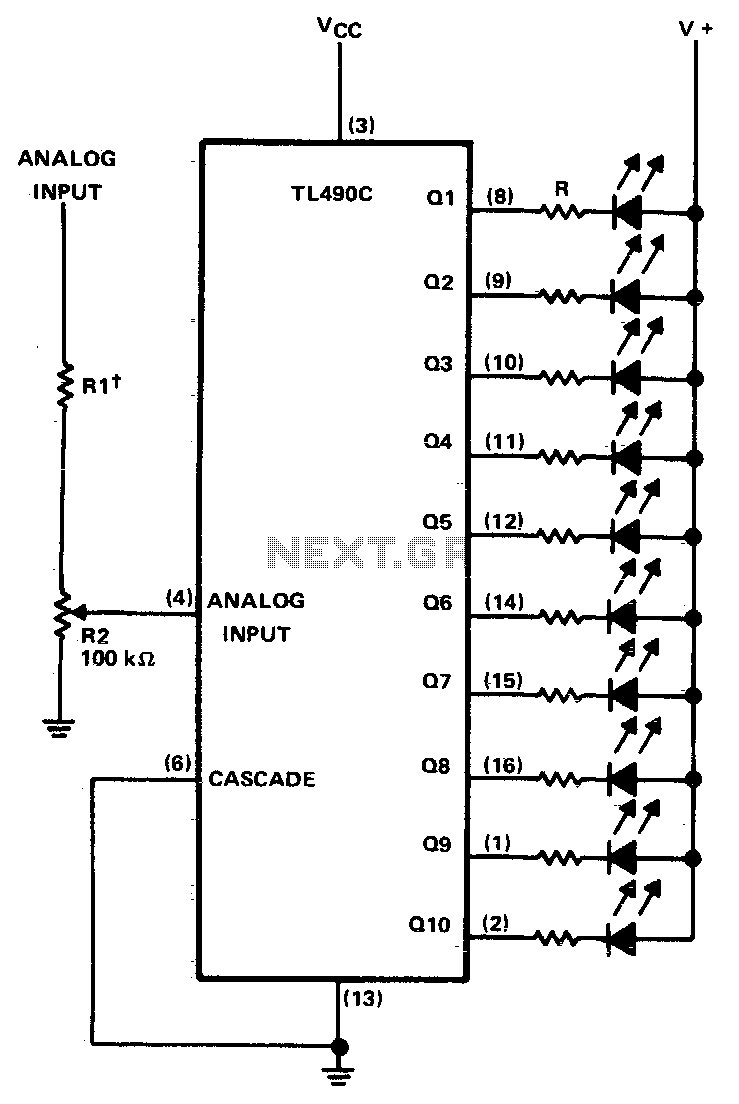

Ten-step voltage-level indicator
This ten-step adjustable analog level detector is capable of sinking up to 40 milliamperes at each output. The voltage range at the input pin should range from 0 to 2 volts. Circuits of this type are useful as liquid-level indicators,...
